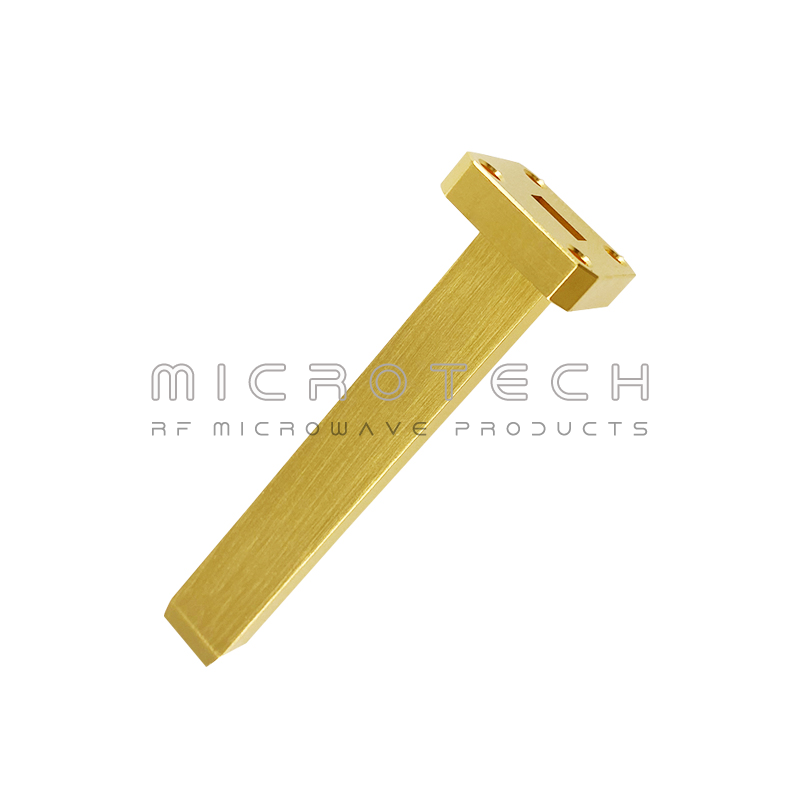

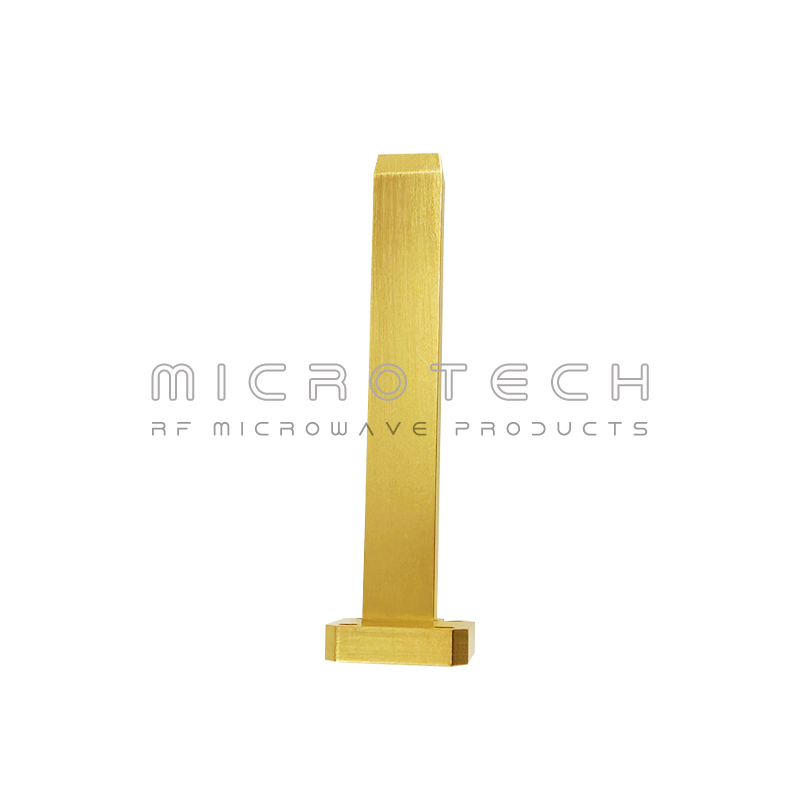

Waveguide Probe Antenna 8 dBi Gain, 26.5-40GHz Frequency Range

Features

Frequency Range:  26.5-40 GHz

Gain: 8 dBi

VSWR: 1.5 Typ

Polarization: Linear

We support customization!

Contact Us Download Datasheet

SHARE PRODUCT:

Specifications
Accessories

RM-WPA28-6.5

Item

Specification

Units

Frequency Range

26.5-40

GHz

Gain

8

dBi

VSWR

 1.5:1



Polarization

Linear



 Horizontal 3dB Beam Width

60

Degrees

Vertical 3dB Bean Width

115

Degrees

Waveguide Size

WR-28



Flange Designation

UG-599/U



Size

Φ19.10*71.10

mm

Weight

27

g

Body Material

Cu



Surface Treatment

Gold
