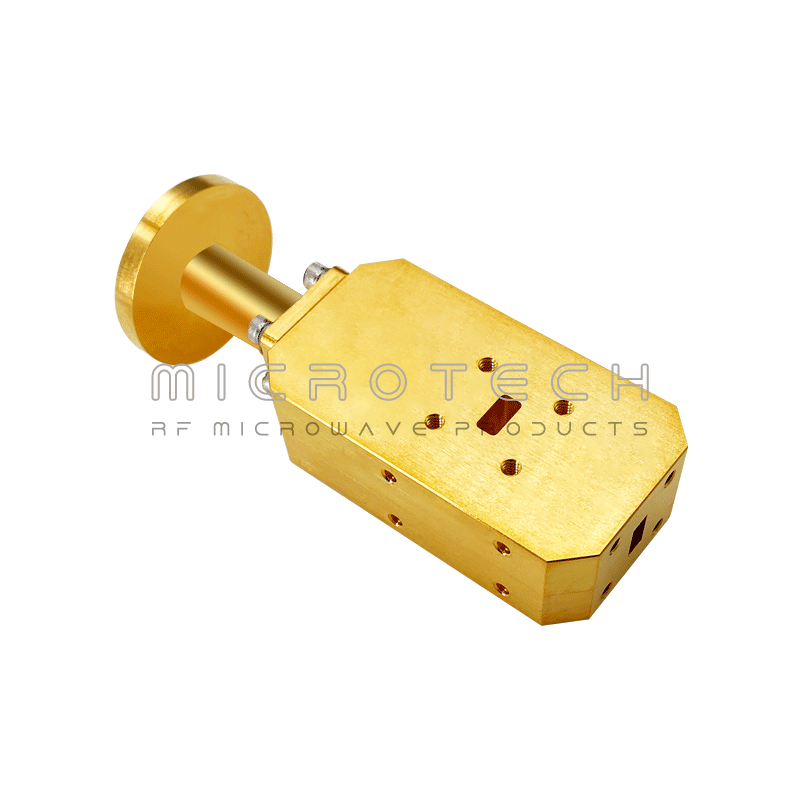

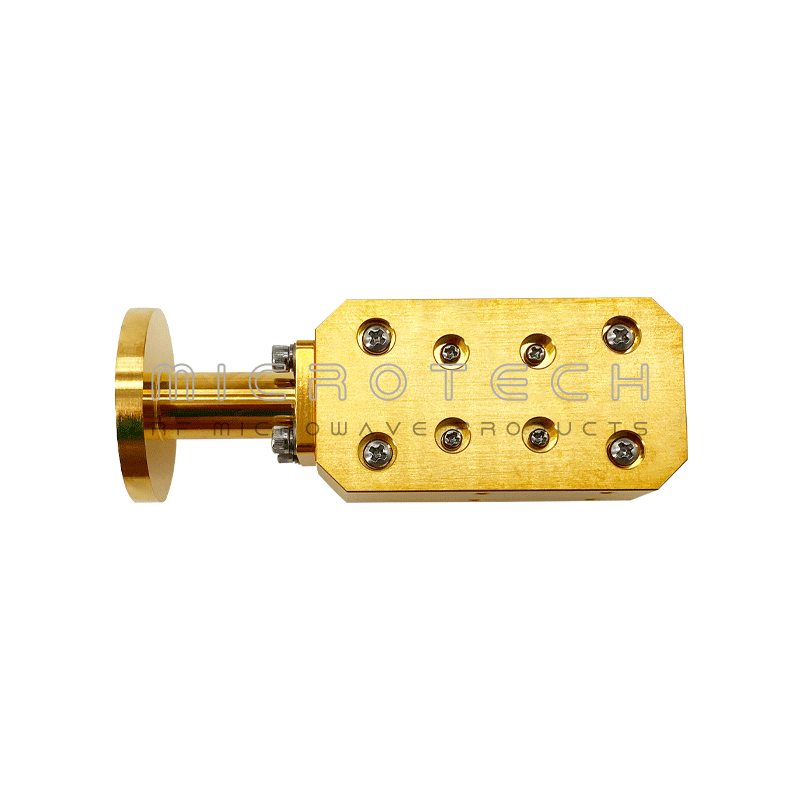

Dual Polarized Horn Antenna 10 dBi Gain, 24-42GHz Frequency Range

Features

Frequency Range：24-42GHz

Gain：10dBi

VSWR：1.5:1

Polarization：Dual

We support customization！

Contact Us Download Datasheet

SHARE PRODUCT:

Specifications
Accessories

RM-DPHA2442-10

Item

Specification

Units

Frequency Range

24-42

GHz

Gain

10

dBi

VSWR

1.5:1



Polarization

Dual



 Horizontal 3dB Beam Width

60

Degrees

Vertical 3dB Beam Width

60

Degrees

Port Isolation

45

dB

Size

31.80*85.51

mm

Weight

288

g

Waveguide Size

WR-28



Flange Designation

UG-599/U



Body Material and Finish

Cu, Gold
