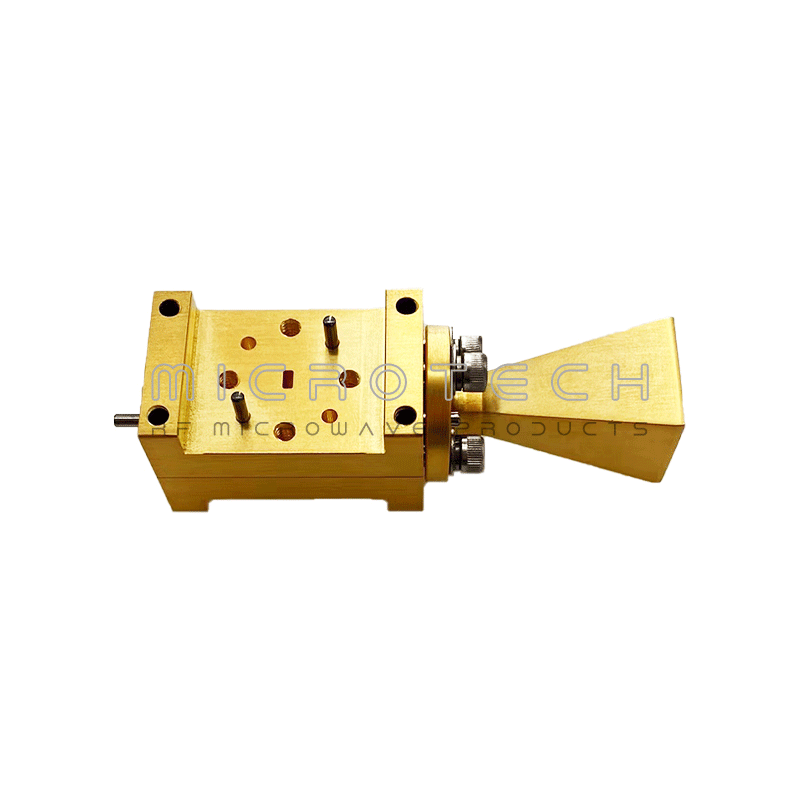

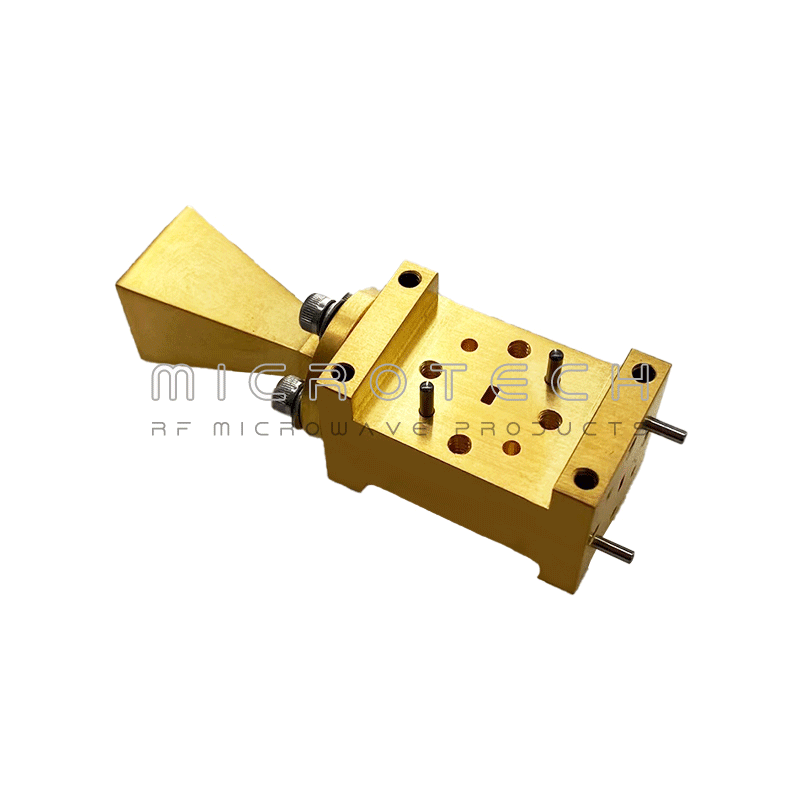

Dual Polarized Horn Antenna 20 dBi Gain, 75-110GHz Frequency Range

Features

Frequency Range: 75-110GHz

Gain: 20dBi

VSWR: 1.4:1

Polarization: Dual

We support customization!

Contact Us Download Datasheet

SHARE PRODUCT:

Specifications
Accessories

RM-DPHA75110-20

Item

Specification

Units

Frequency Range

75-110

GHz

Gain

20

dBi

VSWR

1.4:1



Polarization

Dual



 Horizontal 3dB Beam Width

33

Degrees

Vertical 3dB Bean Width

22

Degrees

Port Isolation

45

dB

Size

27.90*61.20

mm

Weight

77

g

Waveguide Size

WR-10



Flange Designation

UG-387/U-Mod



Body Material and Finish

Cu, Gold
