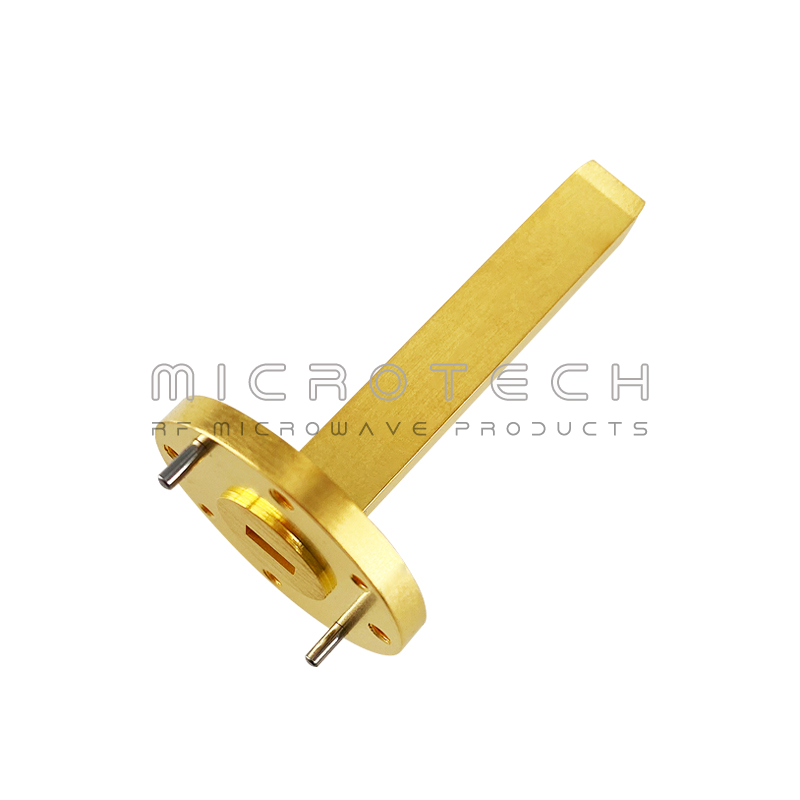

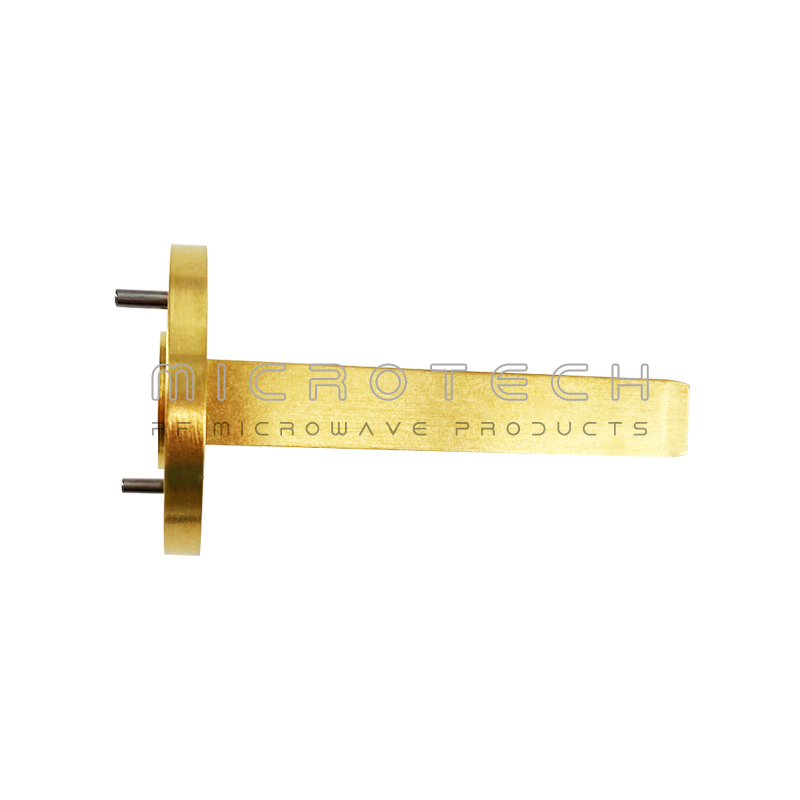

Waveguide Probe Antenna 8 dBi Gain, 33-50GHz Frequency Range

Features

Frequency Range:  33-50 GHz

Gain: 8 dBi

VSWR: 1.5 Typ

Polarization:  Linear

We support customization!

Contact Us Download Datasheet

SHARE PRODUCT:

Specifications
Accessories

RM-WPA22-6.5

Item

Specification

Units

Frequency Range

33-50

GHz

Gain

8

dBi

VSWR

 1.5:1



Polarization

Linear



 Horizontal 3dB Beam Width

60

Degrees

Vertical 3dB Bean Width

115

Degrees

Waveguide Size

WR-22



Flange Designation

UG-383/U



Size

Φ28.58*50.80

mm

Weight

26

g

Body Material

Cu



Surface Treatment

Gold
