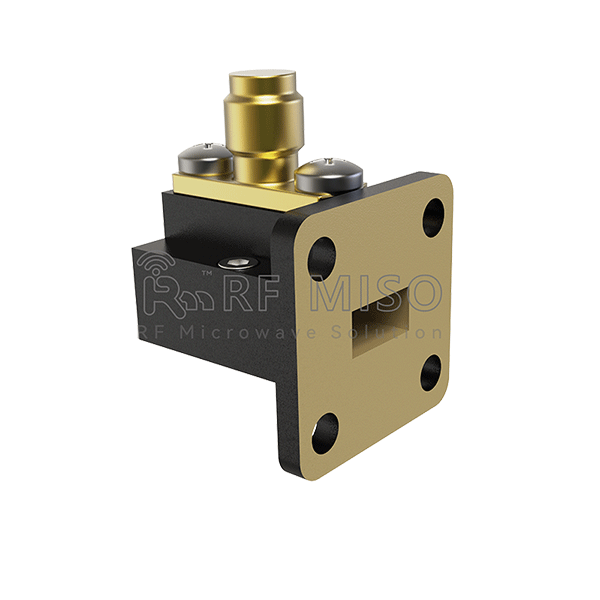

Waveguide to Coaxial Adapter 26.5-40GHz Frequency Range

Features

Frequency Range: 26.5-40GHz

Waveguide: WR28

VSWR: 1.3 Max

Inswrtion Loss: 0.45Max

We support customization!

Contact Us Download Datasheet

SHARE PRODUCT:

Specifications
Accessories

RM-WCA28

Item

Specification

Units

Frequency Range

26.5-40

GHz

Waveguide

WR28

dBi

VSWR

1.3 Max



Insertion Loss

0.45 Max

dB

Flange

FBP320



Connector

2.92-K/2.4mm-K



Average Power

50 Max

W

Peak Power

3

kW

Material

Al



Size

20.1*19.1*26.8

mm

Net Weight

 0.008

Kg
